BLUETOOTH® COMMUNICATION FOR REFRIGERATION
XR-CHC & XRB-CHC controllers

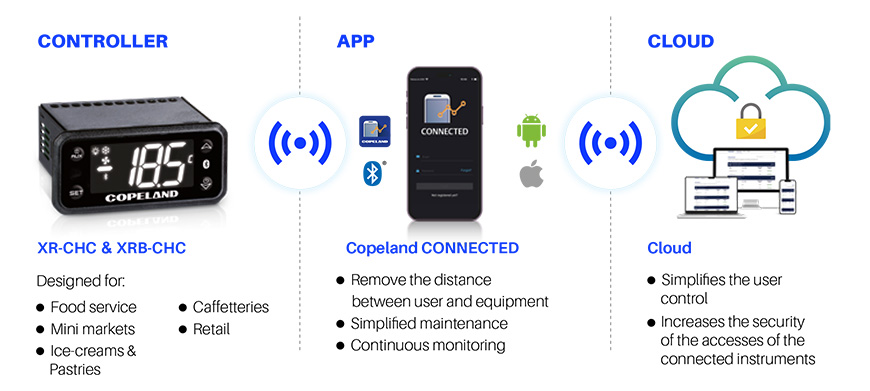

XR-CHC & XRB-CHC series are the innovative controllers designed for refrigeration applications that guarantee high usability and quality food storage. Particularly the XRB-CHC family is dedicated to bottle coolers while the XR-CHC is designed for cabinet and cold rooms. The controllers include Bluetooth® connectivity that allows interaction with mobile devices thanks to the Emerson™ CONNECTED App, making easier configuration, services, analysis and more.
• User friendly interface
• Direct access to main functions
• Easy and intuitive installation
• Hot Key connector for quick and easy programming
• Automatic defrost management
• Pull down time
• Condenser monitor for maintenance management
• Service counters
• Firmware upgradable
• Double parameter map
• RTC with Lithium battery
High value
• The new X-MOD motion detector sensor is the ideal solution for refrigeration field, particulary for cold rooms and bottle coolers, because it is designed for light control and sales performance indication.
• Bluetooth® connectivity.
• Reports (temperature values and events) are easily accessible for a complete and immediate food control. It is possible to save reports as files and send them to other PCs for storage and analysis.
• Thanks to the easy and fast installation of instruments and App, it is possible to install the controller in a few minutes, create new users and browse all the functionalities of the Dixell solution.
• The system is provided with an advanced user control method that blocks unauthorized connections to the controller always ensuring a high security level of the system.
• The powerful datalogger of the instrument allows users to save temperatures, alarms and events. Depending on the sampling time that has been selected, it is possible to save up to 1 year of data.
• We firmly believe in the respect and safeguard of the environment and respond to the requests of eco-friendly gas usage, such as Propane. Controllers mount relays suitable for ATEX applications as they have been tested following EN60079-15.
| Standard refrigeration | XR30CHC | XR60CHC | XR70CHC | XR77CHC |
| Bottle coolers | XRB30CHC | XRB60CHC | XRB70CHC | |
| Display | 110, 230Vac | 110, 230Vac | 110, 230Vac | 110, 230Vac |
| Power Supply | 110, 230Vac | 110, 230Vac | 110, 230Vac | 110, 230Vac |
| Probe inputs | up to 3 x NTC/Pt1000* | up to 3 x NTC/Pt1000* | up to 4 x NTC/Pt1000* | up to 4 x NTC/Pt1000* |
| Digital inputs | up to 2 x configurable** | up to 2 x configurable** | up to 2 x configurable** | up to 2 x configurable** |
| Relay outputs | 16 + 8A | 16 + 8 + 8A or 20 + 8 + 5A | 16 + 8 + 8 + 5A | 16 +16 + 5 + 7A |
| External ports | HOT KEY, TTL | HOT KEY, TTL | HOT KEY, TTL | HOT KEY, RS485 |
| Terminals | spade, screw or plug-in | spade, screw or plug-in | spade, screw or plug-in | spade, screw or plug-in |
| Buzzer | present | present | present | present |
| Data Logger | optional | optional | optional | optional |
| RTC with Lithium battery | optional | optional | optional | optional |
Datasheet Download
| XR-CHC & XRB-CHC Series |  |
Dimension & Cut out Download
| CH : 32x74 mm | |
